We only sell to industrial customers
Grid dimension 3,50 mm

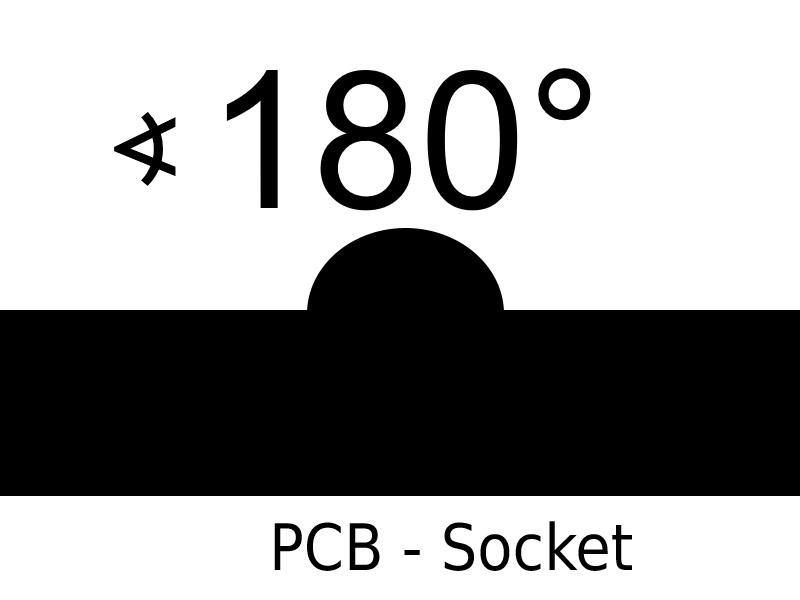

180° Orientation
Closed sides
Quantity | Unit price | Reference price |
---|---|---|
To 4 | €17.55 * | €0.35 * / 1 Piece |
From 5 | €16.20 * | €0.32 * / 1 Piece |
From 10 | €14.87 * | €0.30 * / 1 Piece |
From 20 | €13.50 * | €0.27 * / 1 Piece |
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
CONMATE® PCB connector
3,50 mm PCB header with socket parallel to the board (180° orientation). The sides are closed for additional stability. The economical version without screw flange, for usage in environments without high demands. The compatibility with other manufacturers allows for a gradual switch-over.
![]() | ![]() | ![]() | |
![]() | ![]() | ![]() | ![]() |
Packaging unit: 50 pcs. (up to 15 poles) / 25 pcs. (from 16 poles)
Conmate PCB headers are compatible with PHOENIX CONTACT COMBICON® PCB connectors
MC 1,5/2-G-3,5-1844210
MC 1,5/3-G-3,5-1844223
MC 1,5/4-G-3,5-1844236
MC 1,5/5-G-3,5-1844249
MC 1,5/6-G-3,5-1844252
MC 1,5/7-G-3,5-1844265
MC 1,5/8-G-3,5-1844278
MC 1,5/9-G-3,5-1844281
MC 1,5/10-G-3,5-1844294
MC 1,5/11-G-3,5-1844304
MC 1,5/12-G-3,5-1844317
MC 1,5/13-G-3,5-1844320
MC 1,5/14-G-3,5-1844333
MC 1,5/15-G-3,5-1844346
MC 1,5/16-G-3,5-1844359
MC 1,5/17-G-3,5-1844362
MC 1,5/18-G-3,5-1844375
MC 1,5/19-G-3,5-1844388
MC 1,5/20-G-3,5-1844391
All product names, trademarks and brand names belong to their respective owners.
Socket orient. (header): | 180° |
Levels: | 1 |
Contacts: | Pin - male |
Max. number of poles: | 24 |
Options: | closed sides |
Number of poles: | 3 |
Grid dimension: | 3.50 mm |
Variant: | PCB header |
Rated voltage (CE): | 300 V |
Rated voltage (UL): | 300 V |
Rated current (CE): | 10,5 A |
Rated current (UL): | 10 A |
Socket orient. (header): | 180° |
Levels: | 1 |
Contacts: | Pin - male |
Max. number of poles: | 24 |
Options: | closed sides |
Number of poles: | 3 |
Grid dimension: | 3.50 mm |
Variant: | PCB header |
Rated voltage (CE): | 300 V |
Rated voltage (UL): | 300 V |
Rated current (CE): | 10,5 A |
Rated current (UL): | 10 A |
Abmaße über alles nach Polzahl:
Polzahl | Höhe | Breite | Tiefe |
2 | 10,7 | 7,8 | 9,2 |
3 | 10,7 | 11,3 | 9,2 |
4 | 10,7 | 14,8 | 9,2 |
5 | 10,7 | 18,3 | 9,2 |
6 | 10,7 | 21,8 | 9,2 |
7 | 10,7 | 25,3 | 9,2 |
8 | 10,7 | 28,8 | 9,2 |
9 | 10,7 | 32,3 | 9,2 |
10 | 10,7 | 35,8 | 9,2 |
11 | 10,7 | 39,3 | 9,2 |
12 | 10,7 | 42,8 | 9,2 |
13 | 10,7 | 46,3 | 9,2 |
14 | 10,7 | 49,8 | 9,2 |
15 | 10,7 | 53,3 | 9,2 |
16 | 10,7 | 56,8 | 9,2 |
17 | 10,7 | 60,3 | 9,2 |
18 | 10,7 | 63,8 | 9,2 |
19 | 10,7 | 67,3 | 9,2 |
20 | 10,7 | 70,8 | 9,2 |
21 | 10,7 | 74,3 | 9,2 |
22 | 10,7 | 77,8 | 9,2 |
23 | 10,7 | 81,3 | 9,2 |
24 | 10,7 | 84,8 | 9,2 |
